BOTTOM RETURN BASE — UPFLOW / SIDE RETURN

Model Options: 30" (750 × 406 mm) / 36" (914 × 457 mm)

Description

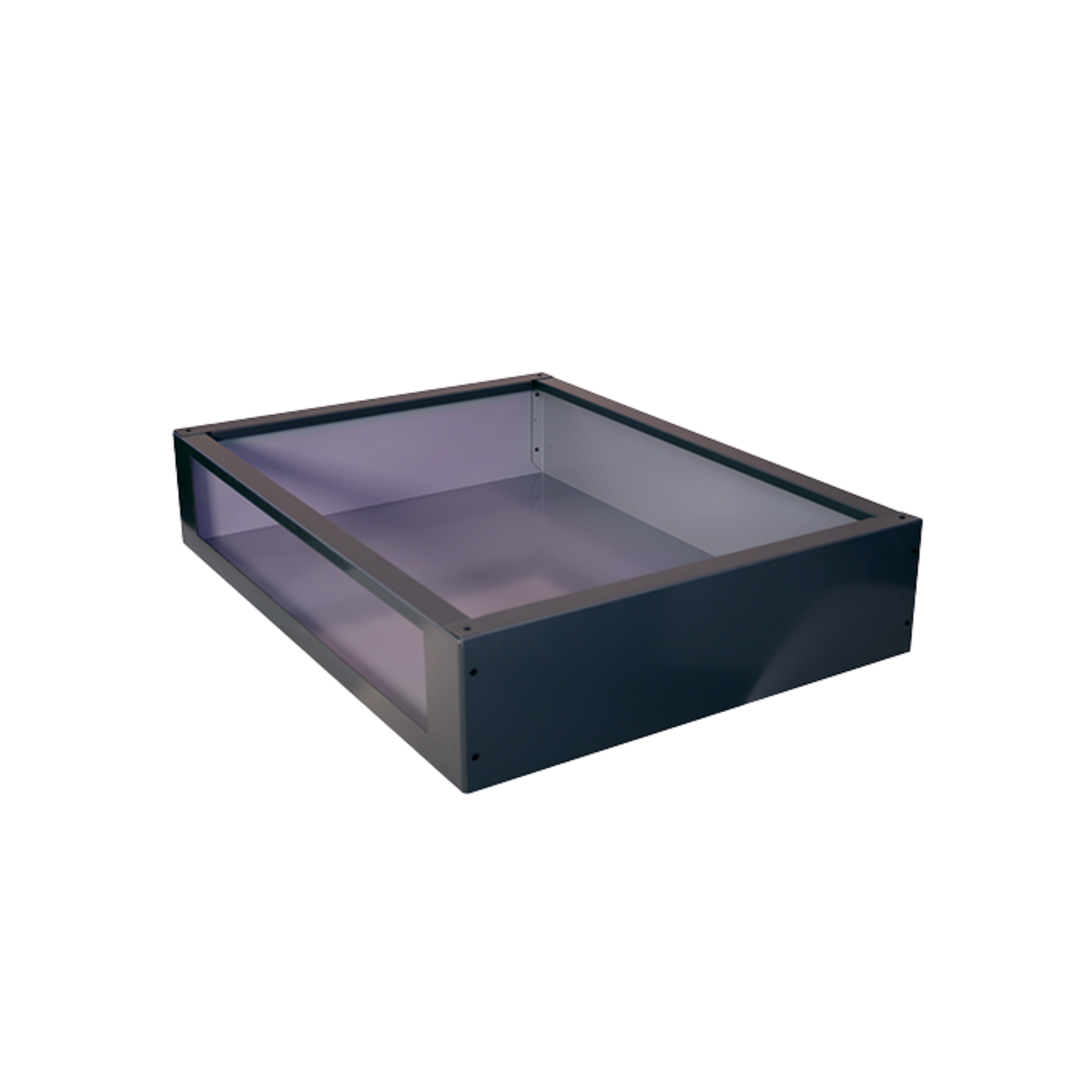

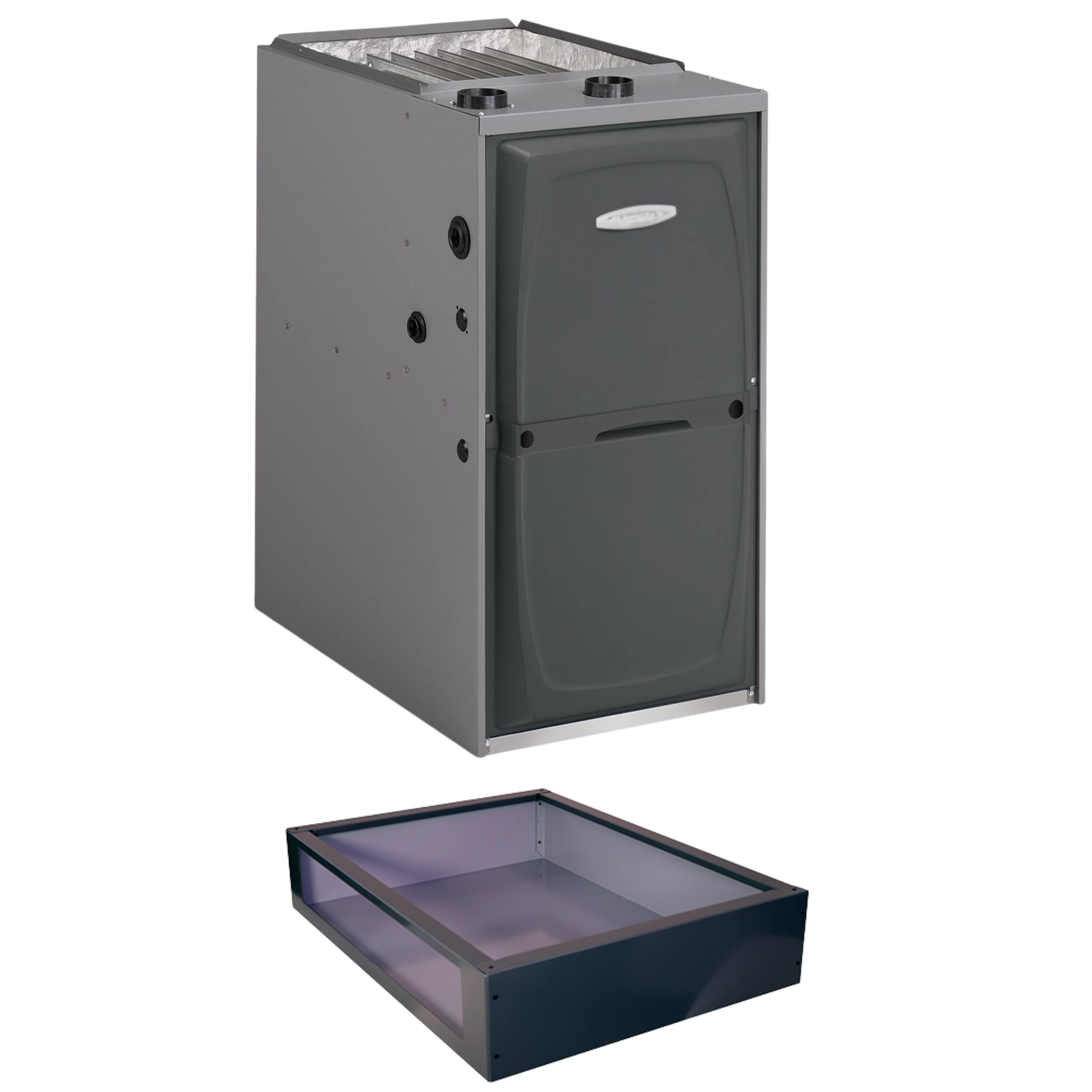

The Soreno Bottom Return Base is engineered to elevate gas furnaces for improved airflow and performance in vertical HVAC installations. Designed with outer dimensions that match standard furnace footprints, this base allows return air through the bottom and sides of the unit. Ideal for pairing with media air cleaners, it helps optimize filtered airflow while providing a sturdy and clean installation finish.

Key Features

Optimized Airflow: Allows both bottom and side cabinet return air for maximum system efficiency.
Media Filter Compatible: Expands filtered airflow when used with a media air cleaner.
Rugged Build: Solid 20-gauge steel cabinet ensures long-term durability and structural support.
Professional Appearance: Painted finish complements furnace units for a clean, seamless install.
Elevates Equipment: Keeps the furnace off the floor for improved performance and cleanliness.

Technical Specifications:

Model	Cab Size	Dimensions (W × D × H)	Weight
SORE-BSRB1428	A	14.50" × 28.00" × 5.75"	8.5 lbs
SORE-BSRB1728	B	17.50" × 28.00" × 5.75"	10.0 lbs
SORE-BSRB2128	C	21.00" × 28.00" × 5.75"	11.0 lbs
SORE-BSRB2428	D	24.50" × 28.00" × 5.75"	13.0 lbs
